Model: AFG
Max Capacity: 2.75 GPH / 385.000 BTU
Operation Mode: On-Off
Fuel: No.1 ó No.2 heating oil (ASTM D396) only
Electrical Feed: 120 v A/C, 60 Hz, 1 phase
Motor: 1/7 hp, 3450 rpm

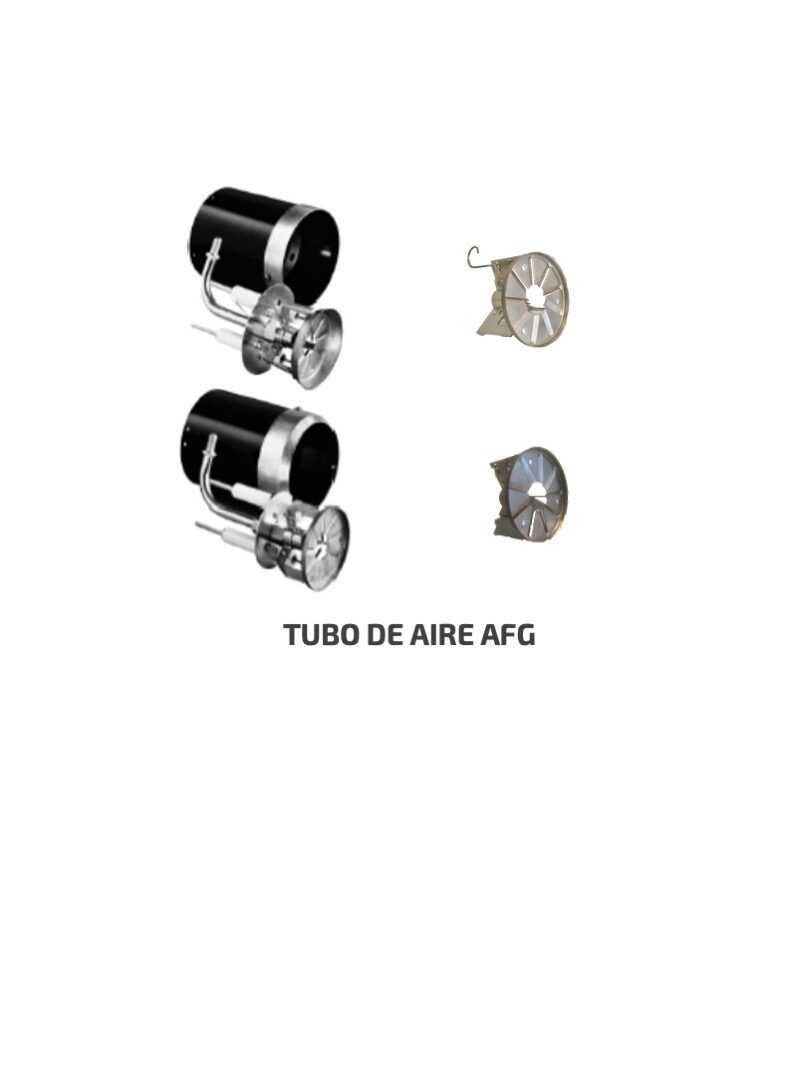

Air Tube Length: 5″, 7″, 9″
Air Tube Diameter: 4″
Rates:
0.40-1.10 GPH / 56.000-154.000 BTU
0.50-1.00 GPH / 70.000-140.000 BTU
0.75-2.75 GPH / 105.000-385.000 BTU
