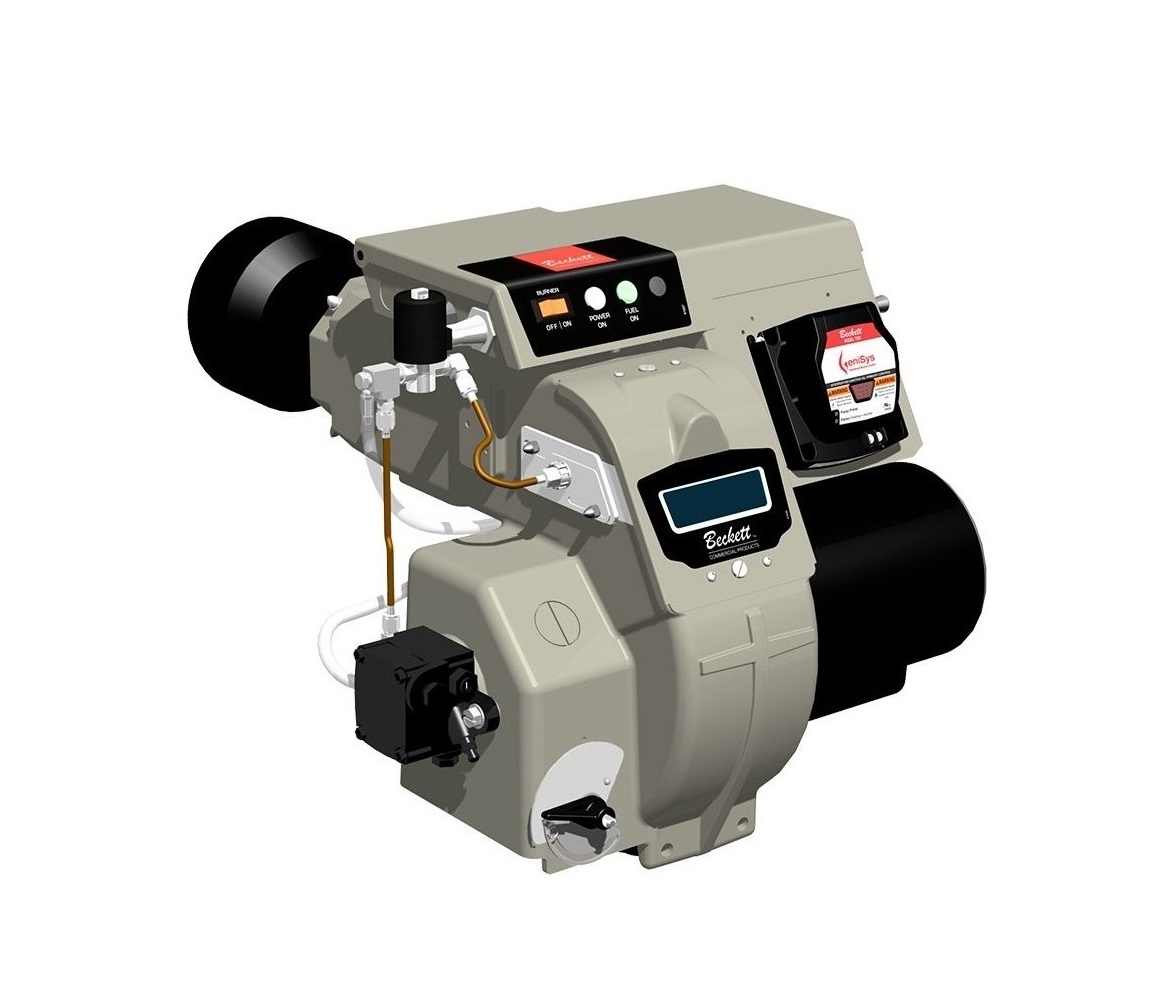

Model: CF1000
Max Capacity: 10 GPH / 1.400.000 BTU
Operation Mode: On-Off
Fuel: No.1 ó No.2 heating oil (ASTM D396) only
Electrical Feed: 120 v A/C, 60 Hz, 1 phase
Optional Voltages: 240v, 1 ph, 60 Hz or 50 Hz
208/240/480v, 3 ph, 60 Hz or 50 Hz
Motor: 1/2 hp, 3450 rpm
Air Tube Length: 6-3/4″, 10-1/4″, 13-3/4″, 17-3/4″
Air Tube Diameter: 5-1/2″
Rates: 4-10 GPH / 560.000-1.400.000 BTU
