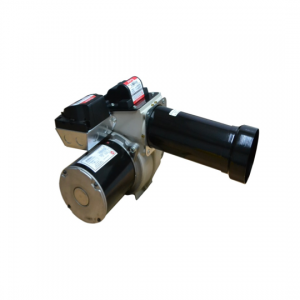

Model: CF3500
Max Capacity: 35 GPH / 4.900.000 BTU
Operation Mode: Low/High/Low
Fuel: No.1 ó No.2 heating oil (ASTM D396) only
Electrical Feed: 208/230 v A/C, 60 Hz, 1 phase
Optional Voltages: 208/230/480/575v A/C, 3 ph, 60 Hz or 50 Hz
Motor: 2 hp, 3450 rpm
Air Tube Length: 8″, 11-1/2″, 14″, 15″, 19″
Air Tube Diameter: 6-1/2″
Rates: 17-35 GPH / 2.380.000-4.900.000 BTU
